Protection against noise is one of the most important issues in our lives. The condition of assuring appropriate comfort and sometimes living in a given place is the assurance of a low level of noise.
Our subjective perception of noise is subject to the following principle: if the level of noise in a room is reduced by 10 decibels with relation to that outside, we get the impression that it is reduced by half. Noise protection must be applied everywhere where noise cannot be completely eliminated. In such applications we are faced with acoustic double glazed units.
Acoustic double glazed units are constructed basing on the asymmetry of the assembled panes of glass, flexible bonding of the panes, and the use of attenuation gases in the space between the panes. Acoustic double glazed units can achieve the acoustic insulation factor Rw = 30 – 53 dB, depending on the type of unit. Before choosing a suitable unit, the source of noise should always be specified and other influential factors should be identified. Therefore, in all cases customers should contact us during an early planning stage, so that all specific requirements for the glass can be taken into consideration by our well qualified staff.
When defining the source of noise we use the so-called acoustic insulation coefficient Rw and corrective coefficients C and Ctr. Rw states the number of decibels suppressed by the glass and does not describe the frequency band but gives an average suppression value within the 100 and 3150 Hz band. PRESS GLASS possesses certification for sound absorbing glass with an acoustic insulation factor ranging between 31 dB and 51 dB.
European standards (EN)
Structure and coefficients
of acoustic glazed units produced by PRESS GLASS and confirmed by certification in accordance with European standards (EN).
Table of acoustic single panes
Table of acoustic double glazed units
Table of acoustic triple glazed units
US standards (ASTM)
Structure and coefficients
of acoustic glazed units produced by PRESS GLASS and confirmed by certification in accordance with ASTM standards.
Table of acoustic single panes
Table of acoustic double glazed units
Table of acoustic triple glazed units
List of results regarding research of acoustic glass
Structure and coefficients
of acoustic glazed units, confirmed on the basis of EN 12758 and EN 12354-3
Table acoustic glazed units confirmed on the basis of european norms
| Standard acoustic insulation coefficients on the basis of EN 12758 and EN 12354-3 |
Structure [mm] | Acoustic insulation coefficient at average frequencies [Hz] R [dB] |
Acoustic insulation coefficient and adaptive coefficients
[dB] |
||||||||
| 125 | 250 | 500 | 1k | 2k | 4k | Rw | Ctr | C | |||
| This chart presents standard values of the weighted acoustic insulation coefficient Rw, as well as the coefficient R for different frequencies of sounds tested for the essential structures of double glazed glass units presented in glass trade magazines and technical publications. | Single glass | ||||||||||
| 3 | 14 | 19 | 25 | 29 | 33 | 25 | 28 | -4 | -1 | ||
| 4 | 17 | 20 | 26 | 32 | 33 | 26 | 29 | -3 | -2 | ||
| 5 | 19 | 22 | 29 | 33 | 29 | 31 | 30 | -2 | -1 | ||
| 6 | 18 | 23 | 30 | 35 | 27 | 32 | 31 | -3 | -2 | ||
| 8 | 20 | 24 | 29 | 34 | 29 | 37 | 32 | -3 | -2 | ||
| 10 | 23 | 26 | 32 | 31 | 32 | 39 | 33 | -3 | -2 | ||
| 12 | 27 | 29 | 31 | 32 | 38 | 47 | 34 | -2 | 0 | ||
| Laminated glass | |||||||||||
|
Rw– weighted acoustic insulation coefficient Ctr – corrective coefficient for sound sources containing a large number of low frequencies, for example urban road traffic C – corrective coefficient for sound sources containing few low frequencies for example high speed road traffic, high speed rail traffic, children playing |
6,4 (VSG.33.1) | 20 | 23 | 29 | 34 | 32 | 38 | 32 | -3 | -1 | |
| 8,8 (VSG 44.2) | 20 | 25 | 32 | 35 | 34 | 42 | 33 | -3 | -1 | ||
| 9,5 (VSG 44.4) | 24 | 26 | 33 | 33 | 35 | 44 | 34 | -3 | -1 | ||
| Double glazing | |||||||||||
| 4/(6-16)/4 | 21 | 17 | 25 | 35 | 37 | 31 | 29 | -4 | -1 | ||
| 6/(6-16)/4 | 21 | 20 | 26 | 38 | 37 | 39 | 32 | -4 | -2 | ||
| 6/(6-16)/6 | 20 | 18 | 28 | 38 | 34 | 38 | 31 | -4 | -1 | ||
| 8/(6-16)/6 | 20 | 21 | 33 | 40 | 36 | 48 | 35 | -6 | -2 | ||
| 10/(6-16)/4 | 24 | 21 | 32 | 37 | 42 | 43 | 35 | -5 | -2 | ||
| 10/(6-16)/6 | 24 | 24 | 32 | 37 | 37 | 44 | 35 | -3 | -1 | ||
| 6,4 (VSG 33.1)/(6-16)/6 | 20 | 19 | 30 | 39 | 37 | 46 | 33 | -5 | -2 | ||
| 6,4 (VSG 33.1)/(6-16)/10 | 24 | 25 | 33 | 39 | 40 | 49 | 37 | -5 | -1 | ||

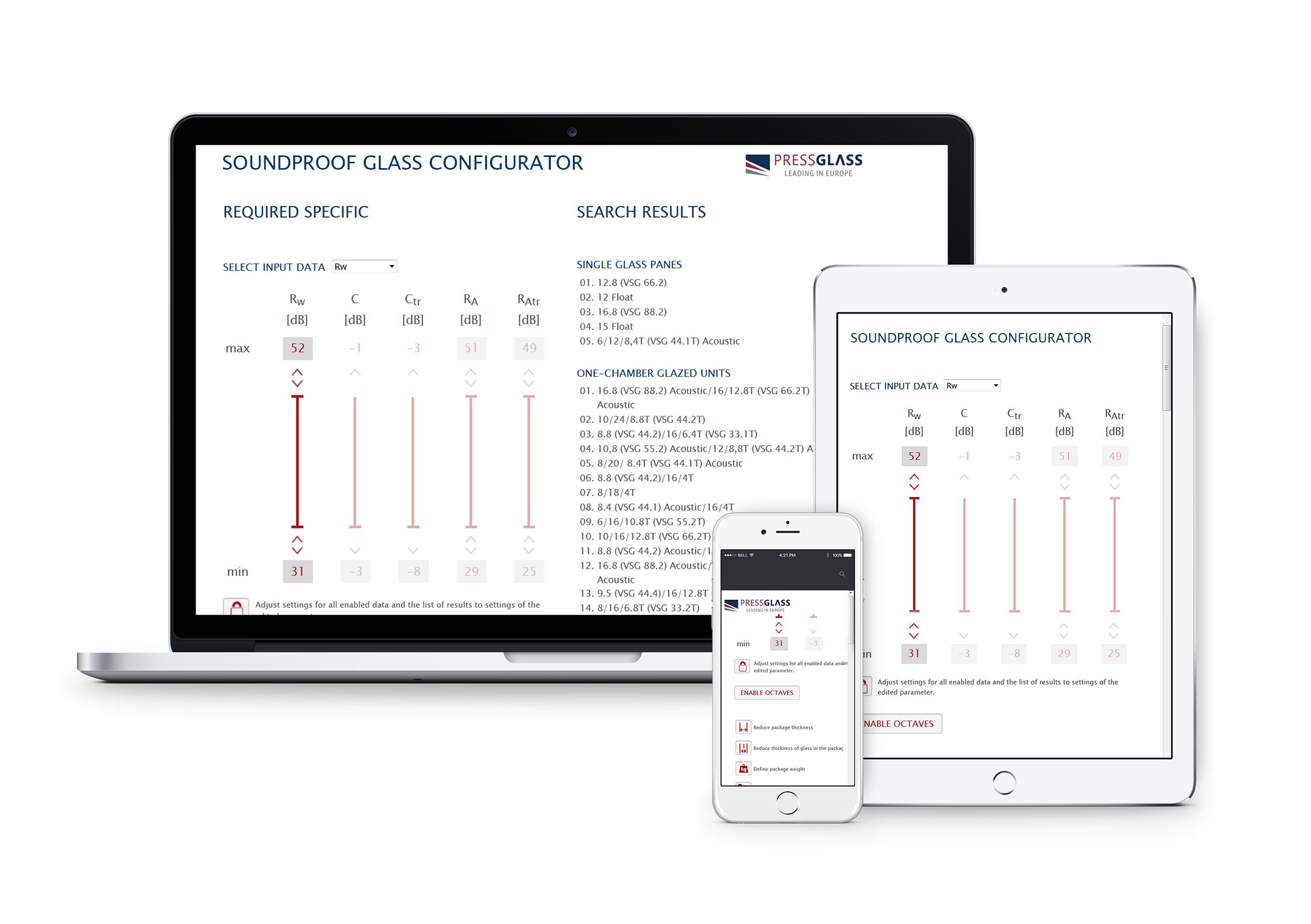

SOUNDPROOF GLASS CONFIGURATOR
Easy to use configuration tool:
- selecting acoustic glass units by acoustic parameters,
- saving selected parameters and units to PDF file for future reference

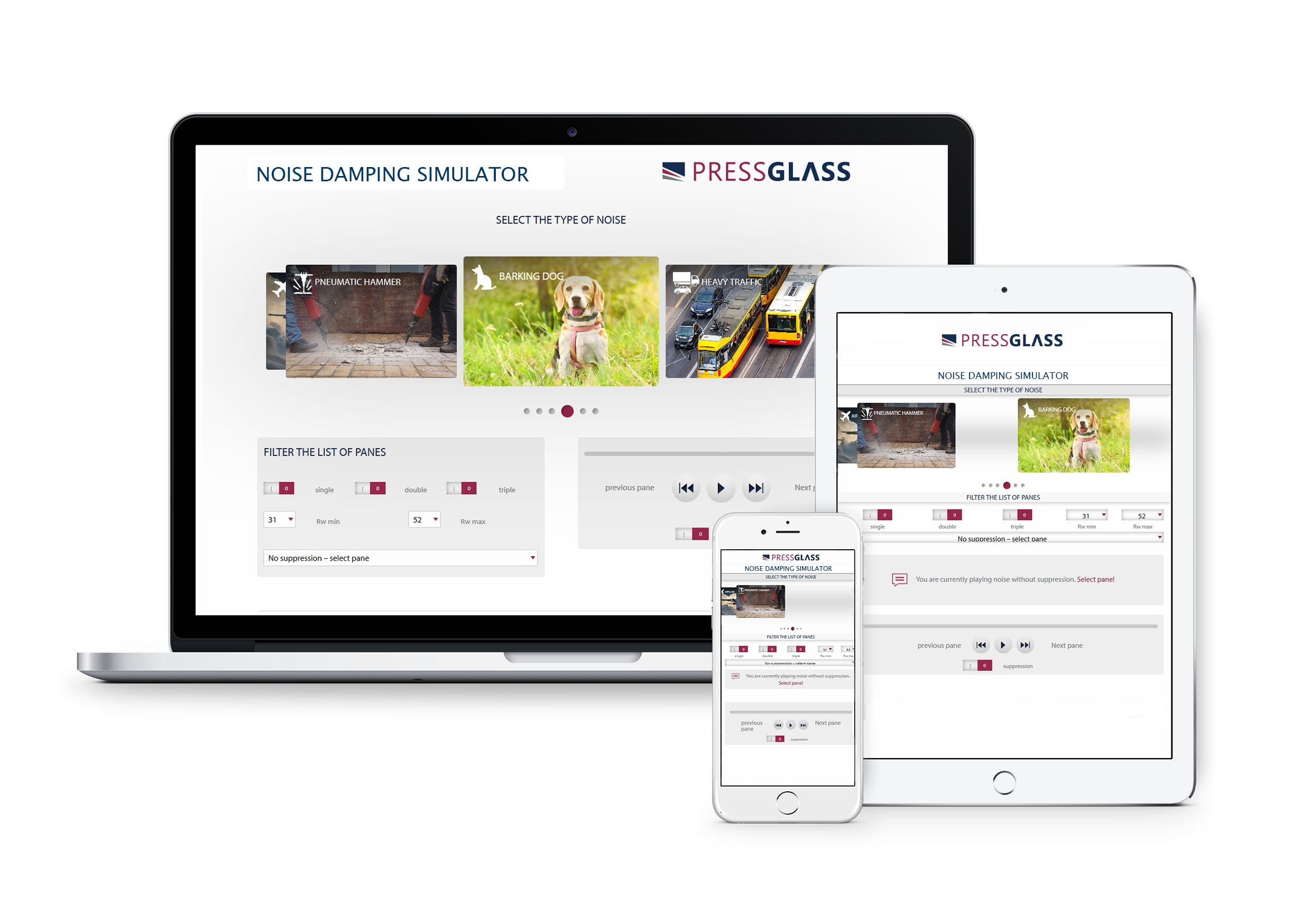

NOISE DAMPING SIMULATOR
An intuitive-to-use simulator enables:
- simulation of noise reduction through the use of acoustic glazed units in relation to the noise heard without any sound barrier,
- quick comparison of auditory effects between all offered acoustic glazed units,
- limiting a comparison to single glazed glass, double or triple glazed units,
- selection of six characteristic types of noise.
