Bent toughened glass
Building glass is mainly associated with flat surfaces of facades, partition walls and other interior design elements. However, it also has another aspect which makes it three-dimensional owing to bending.
Bent glass units offered by PRESS GLASS are made in a process based on tempering. After reaching the glass temperature close to the softening point, the glass pane is curved to obtain the required shape and then quickly cooled down, i.e. tempered. The process of bending provides glass with a new functional and aesthetic quality.
Market offer

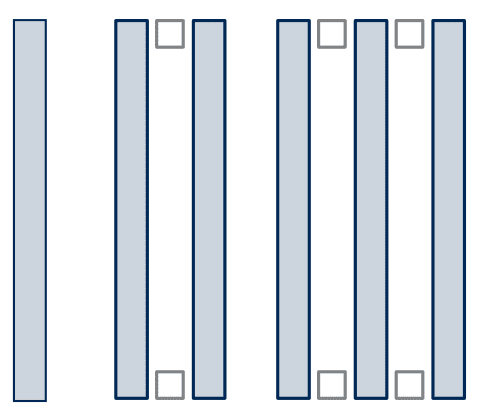

PRESS GLASS offers single glazed units and glazed units, cylindrically bent glass panes based on monolithic float glass, non-coated or with thermal insulating and solar control coatings, tinted or laminated glass.
To make a product more attractive and to extend the range of its application, bent glass can be covered with screen print or digital print according to standard patterns or individual designs.
| Type of bending | Glass thickness [mm] |
Minimum panel dimensions [mm] |
Maximum panel dimensions [mm] |
Minimum bending radius [mm] |
| CB |
6-8 float 10 float 12-15 float |
750 x 750 |
2400(2) x 4200 2400(2) x 4200 2400(2) x 4200 |
15001 30001 40001 |
| LB |
5 float 6-10 float 12-15 float |
500(2) x 200 |
3600(2) x 2200 4200(2) x 2400 4200(2) x 2400 |
25001 25001 40001 |
1 depends on the size and shape
2 the bending edge

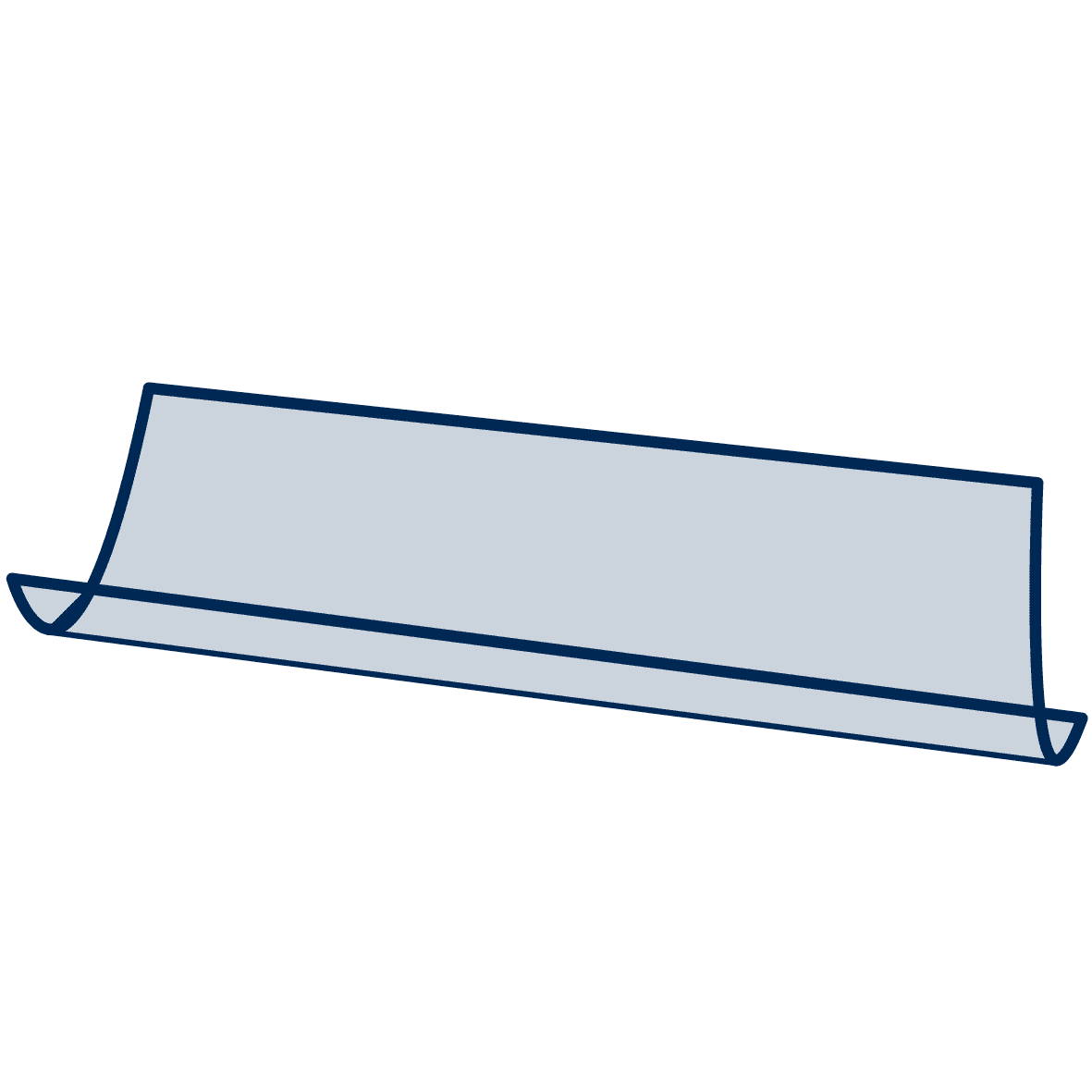

LB – glass bending along a longer edge

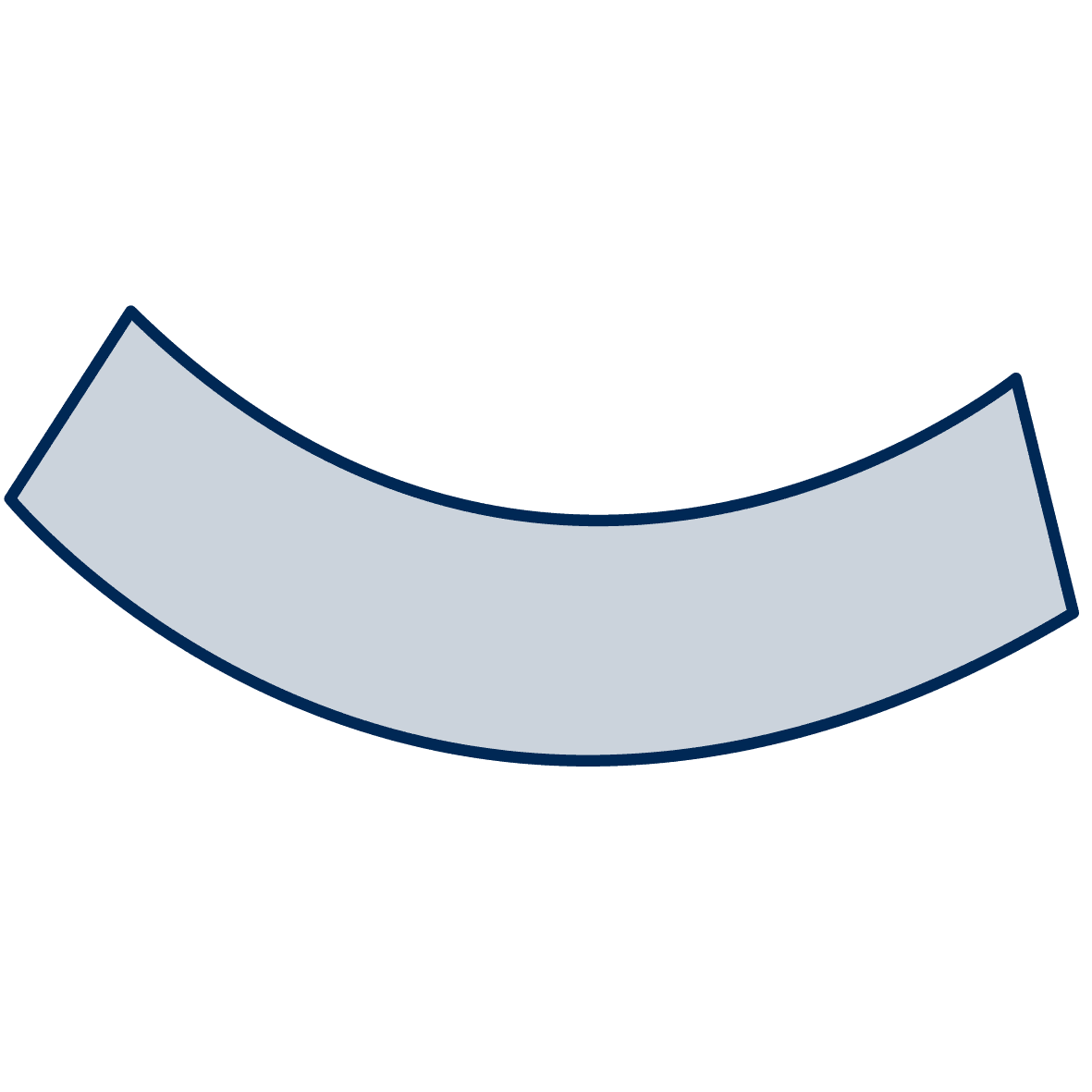

CB – glass bending along a shorter edge
LB - glass bending along a longer edge
CB - glass bending along a shorter edge
The range of offered bent toughened glass covers:
* coatings only on one side (concave)
Summary of advantages
Owing to tempering, it gains all advantages of toughened glass:
Application
Bent toughened glass is always produced upon an individual order, which is verified for technical production capacity.
Bent glass offered by PRESS GLASS can be used:

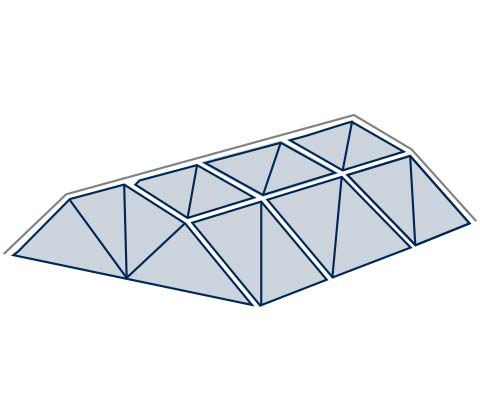

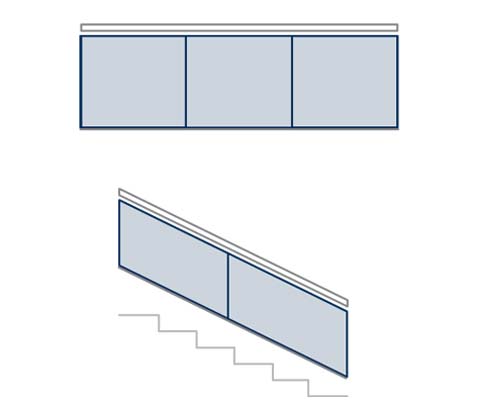

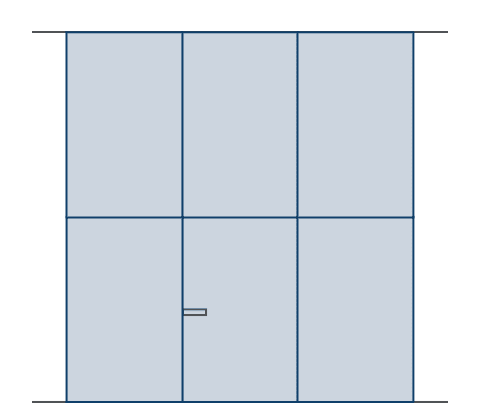

in different building structures:

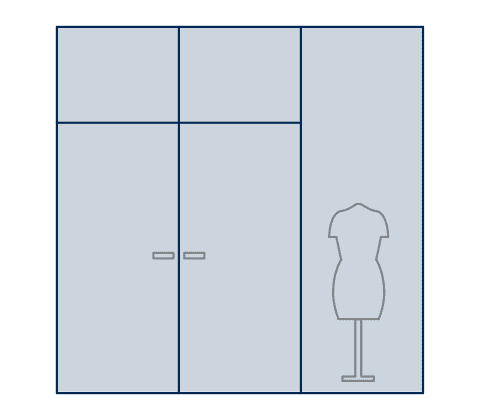

in interior design:
